What It Does
LG A291 is a best-in-class 802.11n indoor access point designed
specifically for business-class environments such as hotels,
airports, coffee shops, shopping centers, sporting venues, and
university campus.
With transfer rates of up to 300Mbps in the 2.4 GHz frequency range,
the device provides an adequate level of service to all users who
connect with legacy 802.11b/g adapters in addition to the latest
802.11n adapters for faster downloads and instant communication.
Integrated 802.3af Power over Ethernet (PoE) allows installation in
areas where power outlets are not readily available. Internally
equipped with 2X2 multiple-input, multiple-output (MIMO) antennas
improve range and maximize data rates. Field tested to wirelessly
cover 16-20 hotel rooms at an indoor operating distance of 40-50
meters and allow simultaneous accesses by up to 30 users.
Stylish Ceiling Mount Design
Housed in a stylish ceiling mountable case, A291 can be installed on
a wall or ceiling just as a ceiling lamp and blends in nicely with
most interior decorations in a modern hotel. Installed highly on
ceiling, it extends optimum wireless signal to multiple neighboring
rooms.
Whole Coverage
Internally equipped with 2X 2 multiple-input, multiple-output (MIMO)
antennas improve range and maximize data rates. Field tested to
wirelessly cover 16-20 hotel rooms at an indoor operating distance
of 40-50 meters and allow simultaneous accesses by up to 30 users.
Up to 300Mbps wireless rate ensures multiple users an adequate level
of service.
Power over Ethernet
The device has integrated 802.3af/at Power over Ethernet (PoE) for
easy installation and lower cost. So it can be installed in areas
where power outlets are not readily available, eliminating the mess
of altering existing network infrastructure.
VLAN & Access Control System
LG A291 is compatible with 802.1Q standard, which makes network
broadcast more effective, easier to monitor the network and manage
the LAN traffic, then to achieve the communication between different
geographical sectors. With Access Control System, it is easy to
manage and control our ceiling AP in user name, passwords, channel,
IP address change.

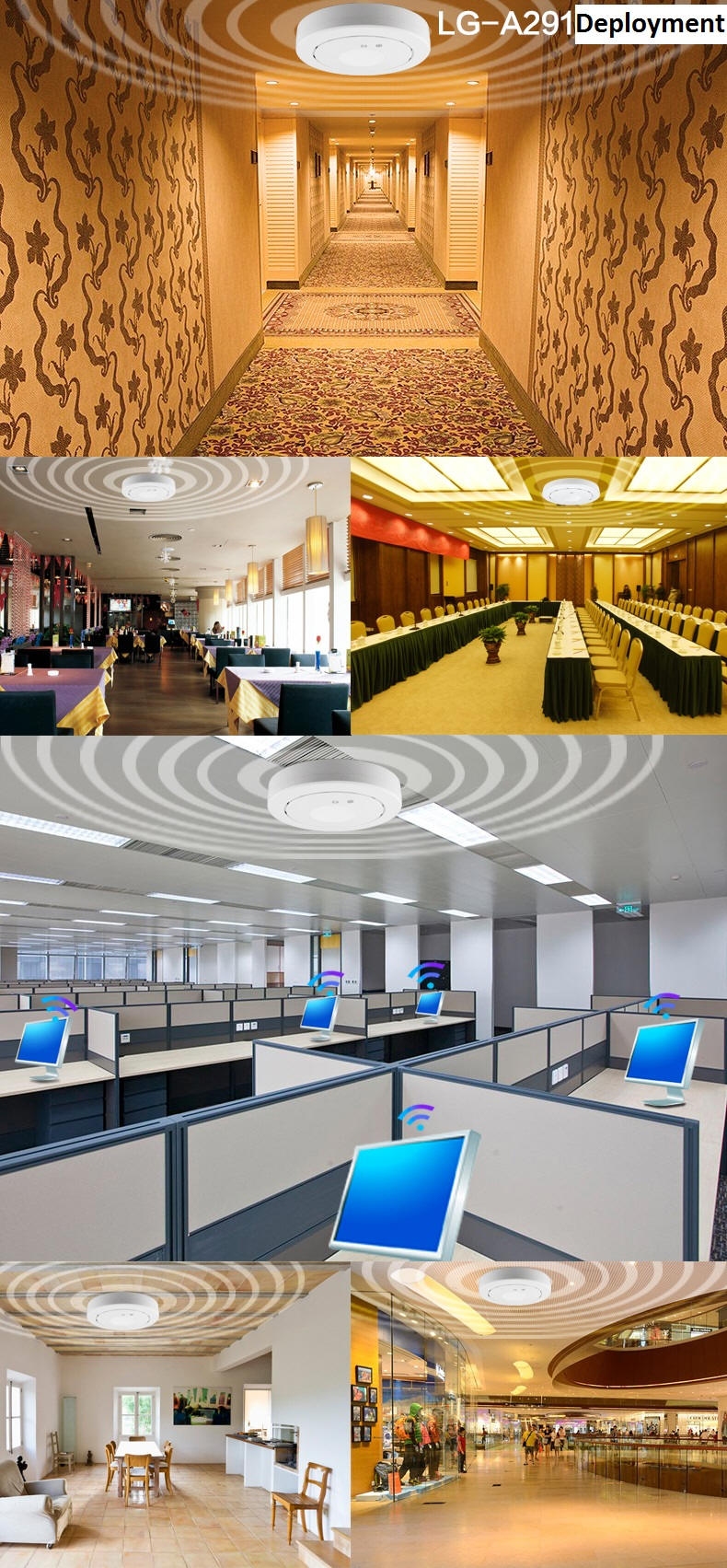

1. Application Place: hotels, airports, coffee shops, shopping
centers, sporting venues, and university campus...

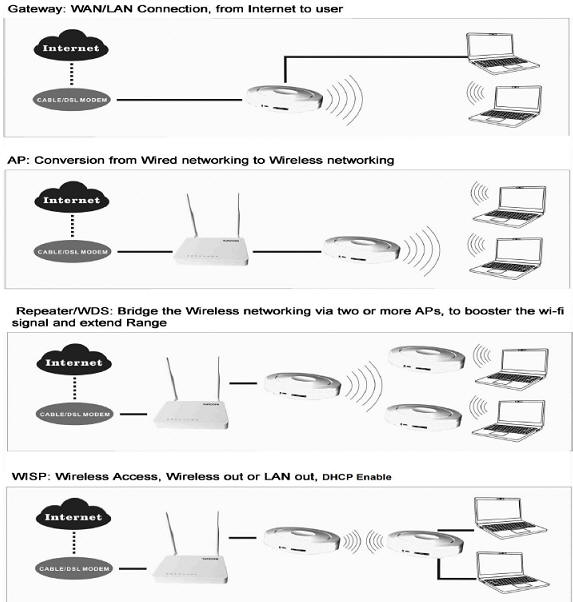

2. Working Mode: Gateway/ AP/ WDS/ Bridge/WISP, please refer
following picture for more info
LGA291 can be either powered by DC power supply or PoE adapter coming with the products.
For detailed setup instructions, please refer to A291 Wireless Bridge Configuration Guide(PDF).
LG-A293 is the same as A291 listed above except that A293 supports 5.8 G frequency and 48v PoE while A291 only support 2.4G and 24v PoE.
.
What It Does
LG A293 is a best-in-class 802.11n indoor access point designed
specifically for business-class environments such as hotels,
airports, coffee shops, shopping centers, sporting venues, and
university campus.
With transfer rates of up to 300Mbps in the 2.4 GHz frequency range,
the device provides an adequate level of service to all users who
connect with legacy 802.11b/g adapters in addition to the latest
802.11n adapters for faster downloads and instant communication.
Integrated 802.3af Power over Ethernet (PoE) allows installation in
areas where power outlets are not readily available. Internally
equipped with 2X2 multiple-input, multiple-output (MIMO) antennas
improve range and maximize data rates. Field tested to wirelessly
cover 16-20 hotel rooms at an indoor operating distance of 40-50
meters and allow simultaneous accesses by up to 30 users.
Stylish Ceiling Mount Design
Housed in a stylish ceiling mountable case, A293 can be installed on
a wall or ceiling just as a ceiling lamp and blends in nicely with
most interior decorations in a modern hotel. Installed highly on
ceiling, it extends optimum wireless signal to multiple neighboring
rooms.
Whole Coverage
Internally equipped with 2X 2 multiple-input, multiple-output (MIMO)
antennas improve range and maximize data rates. Field tested to
wirelessly cover 16-20 hotel rooms at an indoor operating distance
of 40-50 meters and allow simultaneous accesses by up to 30 users.
Up to 300Mbps wireless rate ensures multiple users an adequate level
of service.
Power over Ethernet
The device has integrated 802.3af/at Power over Ethernet (PoE) for
easy installation and lower cost. So it can be installed in areas
where power outlets are not readily available, eliminating the mess
of altering existing network infrastructure.
VLAN & Access Control System
LG A293 is compatible with 802.1Q standard, which makes network
broadcast more effective, easier to monitor the network and manage
the LAN traffic, then to achieve the communication between different
geographical sectors. With Access Control System, it is easy to
manage and control our ceiling AP in user name, passwords, channel,
IP address change.
1. Application Place: hotels, airports, coffee shops, shopping
centers, sporting venues, and university campus...
2. Working Mode: Gateway/ AP/ WDS/ Bridge/WISP, please refer
following picture for more info
