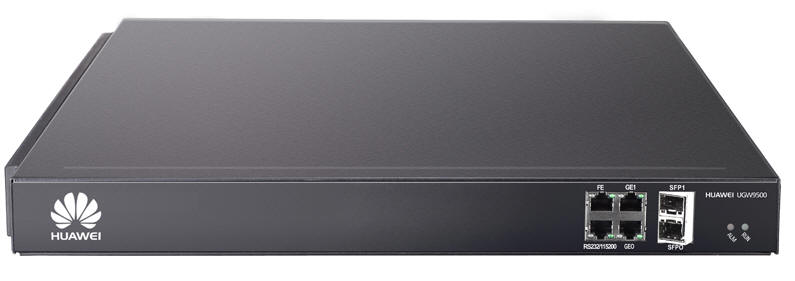

UGW9500 Universal Media Gateway

Powerful, scalable multimedia gateway providing full interoperability between Huawei HD Telepresence systems and 3rd-party systems based on TIP and traditional H.323 and SIP standards.

Full-mesh hardware platform and imbedded real-time operating system provide powerful, secure media processing — preserving investments in existing equipment and extending real-time collaboration capabilities without upgrading the network.

Easy to install and highly reliable, the UGW9500 Gateway lets users of TIP-based video conferencing systems participate in communications hosted on Huawei’s immersive TP3 and smaller RP telepresence systems.







Product Features

• Powerful media processing hardware and integrated multimedia and video conferencing networking standards provide a life-like, 1080p30 HD video experience
• Allows single-screen or 3-screen telepresence sites and traditional video conferencing systems to interoperate with TIP-based systems
• Expandable from 6 to 45 ports; provides up to 45 channels of 1080p HD at 4 Mbit/s in direct forwarding mode, or 3 x 4 Mbit/s channels with media stream adaptation enabled to TIP-based systems
• Embedded ITU-T H.323 gatekeeper and IETF Session Initiated Protocol (SIP) support simplified deployment and operation, lowering TCO
• Engineered for high reliability, MBTF ≥ 100,000 hours



Product Characteristics



HD Interoperability

Complies with the ITU-T's H.323 protocol and the IETF's Session Initiation Protocol (SIP), supports audiovisual encoding standards of the ITU-T, ISO and IEC, and enables 1080p30 HD communication with TIP-based telepresence systems, providing users with excellent videoconferencing experience.

Comprehensive Compatibility

Supports TIP.

Allows Huawei's three-screen/single-screen telepresence systems and HD/SD/desktop video endpoints to join conferences initiated by TIP-based telepresence systems and place/receive point-to-point calls to/from TIP-based telepresence sites.

Allows other vendors' video endpoints to communicate with TIP-based telepresence systems or sites.

Easy to Deploy, Protecting Customers' Investments

Box-shaped, all in one designed with embedded gatekeeper for independent networking. Provides an easy-to-operate embedded web server.

Requires no reconstruction of existing networks for capacity expansion, protecting customers' investments.

Advanced Architecture Design

Based on a cutting-edge full-mesh hardware platform, provides powerful media processing capabilities. Runs an embedded real-time operating system, effectively preventing virus and hacker attacks and ensuring 24/7 stable operation.

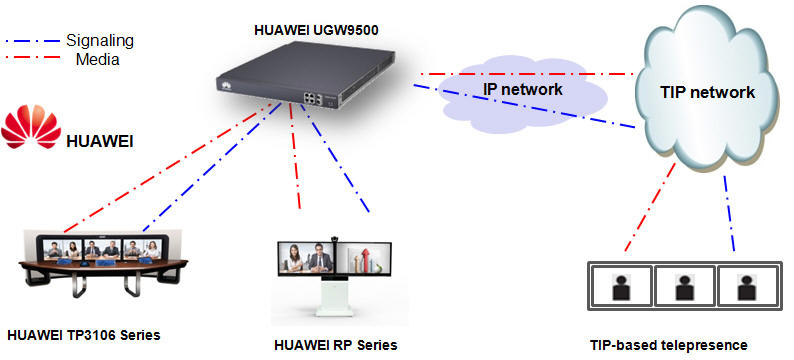

Deployment Scenario



Product Specification

HUAWEI UGW9500 Technical Specifications
Ports and Capabilities
Configuration (Supported Ports)	Capabilities
06	2 channels of tri-screen telepresence or 6 channels of 1080p30 4Mbit/s HD video (direct forwarding). 3 channels of 720p30 4Mbit/s HD video (when adaptation of media streams is required).
15	5 channels of tri-screen telepresence or 15 channels of 1080p30 4Mbit/s HD video (direct forwarding). 3 channels of 720p30 4Mbit/s HD video (when adaptation of media streams is required).
30	10 channels of tri-screen telepresence or 30 channels of 1080p30 4Mbit/s HD video (direct forwarding). 3 channels of 720p30 4Mbit/s HD video (when adaptation of media streams is required).
45	15 channels of tri-screen telepresence or 45 channels of 1080p30 4Mbit/s HD video (direct forwarding). 3 channels of 720p30 4Mbit/s HD video (when adaptation of media streams is required).
Performance Indicators and Physical Parameters
Standards and Protocols
Communication standards	ITU-T H.323, IETF SIP
Audio Standards & Protocols	G.711, G.722, G.728, AAC-LD/LC
Video Standards & Protocols	H.261, H.263, H.264, H.239
Network standards	TCP/IP, FTPS, RTP, RTCP, HTTP, HTTPS, SNMP, TELNET, SSH, DNS, DDNS
Other supported standards	H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.460, TIP
Network ports
Two Gigabit Ethernet ports	10M/100M/1000M, RJ45
One Fast Ethernet port	10M/100M, RJ45
One RS232 port	RJ45
Two SFP ports	1000M optical port
Physical specifications
W x D x H	436 mm x 540 mm x 43.5 mm
Weight	< 15 kg
Environmental requirements
Operating temperature	Long-time working: 0℃ to 45℃ Short-time working: –5℃ to +45℃
Relative humidity	5% to 90% (non-condensing)
Air pressure	70–106 kPa (70 kPa is equal to the atmospheric pressure at the altitude of 3000 m)
Noise	< 65 dB
Electromagnetic compatibility	ETS300 386-2, IEC61000-4-2, and IEC 61000-4-4
Certification	RoHS, WEEE, 3C and CE
Reliability
Mean time between failures (MTBF)	100,000 hours
Power supply and power consumption
Input voltage	100–240 V AC
Frequency range	50/60 Hz
Power consumption	< 250 W
