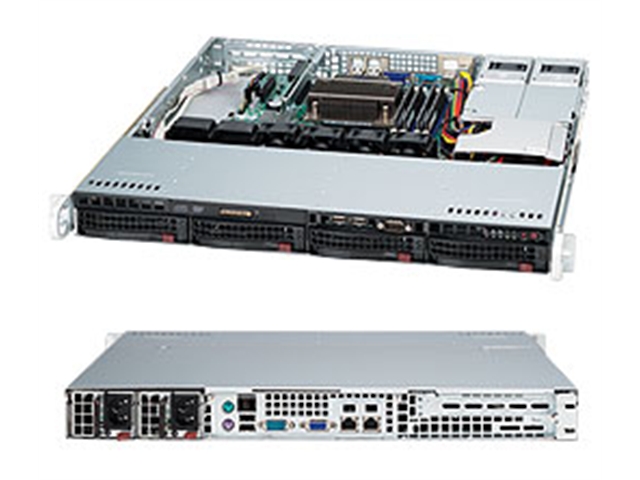

MPN: CSE-813MTQ-R400CB
Category: Cases >> Server
Vendor: Supermicro
Weight: 33.5 LB(S)
Price: US$ 617.49
Form Factor
1U chassis support for motherboard sizes - Micro ATX 9.6" x 9.6" or ATX 12" x 10"
Processor Support
Supports dual, single Intel / AMD processors
Available Colors:
Black
Expansion Slots
1x Full-height AOC expansion slot
Drive Bays
Hot-swap:
4x 3.5" Hot-swap SAS2 (6Gb/s) / SATA drive bays
SAS or enterprise SATA HDD only recommended
SAS / SATA Backplane
1x SAS / SATA Backplane
Peripheral Drives
DVD-ROM: Slim DVD-ROM drive (opt.)
Others: Front USB/COM access
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
System Cooling
Fans :
4x 4cm 4-pin PWM fans
2x additional fans optional
6x fans total maximum
Power Supply
400W (1+1) Redundant SuperCompact Short-depth AC-DC high-efficiency power supply with PMBus and I2C
AC Input :400W: 100-240 V, 50-60 Hz, 6-3 Amp
DC Output+5V standby :3 Amp
DC Output+12V :33 Amp
With Power Distributor :
+5V: 25 Amp
+3.3V: 25 Amp
-12V: 0.6 Amp
Regulatory (Power Supply)
Power Supply Safety / EMC :
USA - UL listed, FCC
Canada - CUL listed
Europe/CE Mark
EN 60950/IEC 60950-Compliant
Dimension (L"xW"xH"):
19.85 x 17.2 x 1.7
Weight:
33.50 lb
Warranty Information
1 year
