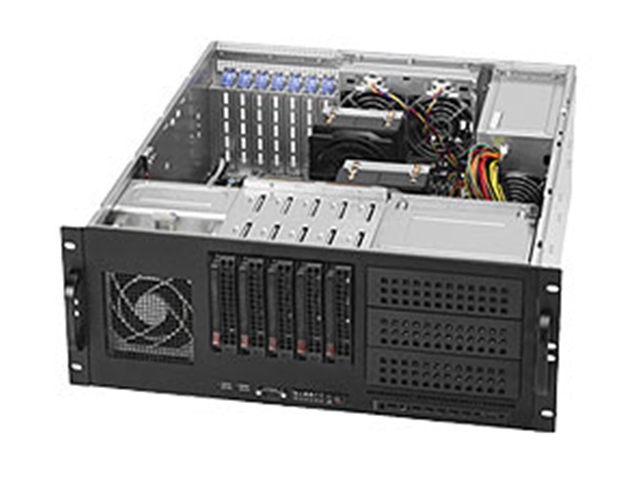

MPN: CSE-842TQ-865B
Category: Cases >> Server
Vendor: Supermicro
Weight: 25 LB(S)
Price: US$ 463.2
Form Factor
Industrial Short-Depth 4U Rackmount supports E-ATX, ATX, Micro ATX motherboards max. motherboard size 12" x 13"
Processor Support
Supports dual, single Intel / AMD processors
Available Colors :Black
Expansion Slots
7x Tool-less Full-height, Full-length PCI expansion slots
Drive Bays
Hot-swap :
5x 3.5" (8x 2.5" optional kits SAS/SATA Hot-swap Drive Bays)
SAS or enterprise SATA HDD only recommended
Peripheral Bay(s) :
3x 5.25" Peripheral Drive Bays
1x Slim DVD-ROM (optional) Drive Bay
System Cooling
Fans (Tool-less) :
1x Front Intake 9cm PWM cooling fan
2x Rear 8cm PWM cooling fans
System Monitoring
Chassis intrusion switch
Power Supply
865W AC power supply (cooling-redundant) w/ PFC
AC Voltage :
100 - 240V, 50-60Hz, 12-6 Amp
+5V standby :
6.5 Amp
+12V :
70 Amp
+5V :
30 Amp
+3.3V :
30 Amp
-12V :
1 Amp
Certification :
80 PLUS Certified
Regulatory (Power Supply)
Power Supply Safety / EMC :
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
SAS / SATA Backplane
SAS / SATA Hard Drive Backplane
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power Fail LED
Ports2x USB Ports
Dimension (L"xW"xH"):
20.5 x 17.2 x 7
Weight:
25.0 lb
Warranty Information
1 year
