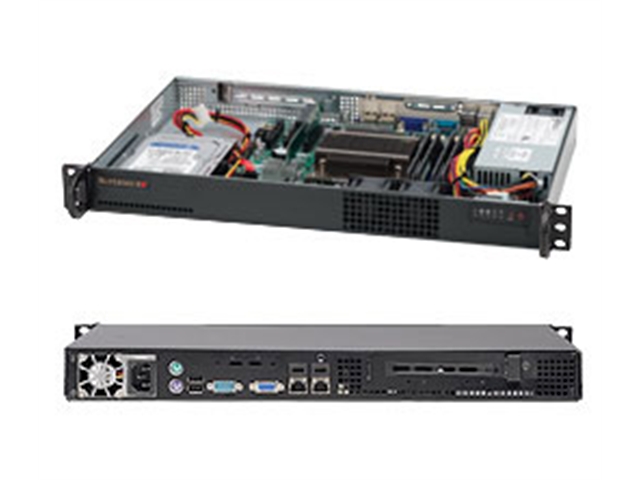

MPN: CSE-510L-200B
Category: Cases >> Server
Vendor: Supermicro
Weight: 11 LB(S)
Price: US$ 115.28
Form Factor
11.3"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6", Micro ATX
Processor Support
Single processor support: Intel Core 2 Duo, Xeon 3000 Series (up to 65W), Intel Pentium D series
Available Colors :Black
Expansion Slots
1x full-height half-length PCI expansion slot (Optional)
(Riser Card Required)
Drive Bays
Internal Bay :
1x 3.5" Internal Drive Bay (Standard)
OR 4x 2.5" Internal Drive Support (Optional)
SAS or enterprise SATA HDD only recommended
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
System Cooling
Fans2x 8500 RPM Cooling Fan
Cooling Components :
1x Air Shroud (optional)
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage :100 - 240V, 50-60Hz, 3-1.5 Amp Max
+5V :16.0 Amp
+5V standby :2.0 Amp
+12V :15.0 Amp
-12V :0.8 Amp
+3.3V :17.0 Amp
Regulatory (Power Supply)
Power Supply Safety / EMC :
USA - UL listed
Canada - CUL listed
EN 60950/IEC 60950-Compliant
Germany - TUV Certified
Dimension (L"xW"xH"):
11.3 x 17.2 x 1.7
Weight:
11.0 lb
Warranty Information
1 year
