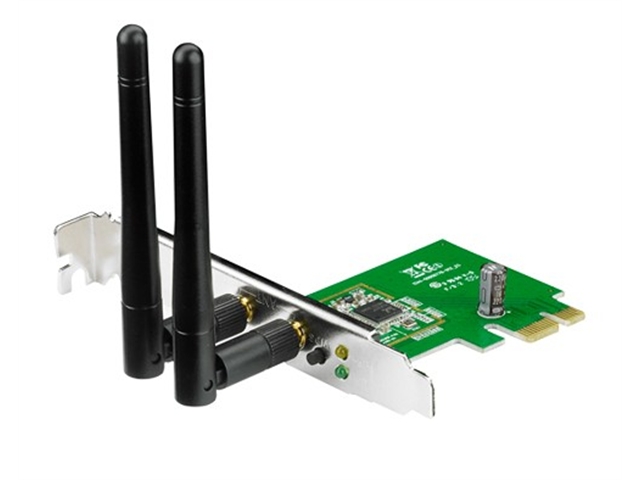

PCE-N15 | ActForNet

MPN: PCE-N15
Category: Networking >> Networking Card (Desktop)
Vendor: ASUS TeK
Weight: 0.38 LB(S)
Price: US$ 32.49

-
+
Add to Quote
Quote Now
WPS(Wi-Fi Protected Setup) button - Quickly set up a secure wireless connection
Software AP - Connect your notebook and game consoles to the Internet
Supports WEP, WPA-PSK, and WPA2-PSK methods for enhanced security

WPS(Wi-Fi Protected Setup) button
For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps

Software AP
Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.

Network Standard
IEEE 802.11 b/g/n

Interface
PCI Express

Antenna
2 x R SMA Antenna

Operating Frequency
2.4GHz

Operation Channel
11 for N. America, 14 Japan, 13 Europe (ETSI)

Data Rate
802.11 b/g/n : downlink up to 300Mbps, uplink up to 300Mbps(20/40MHz)

Output Power
b mode : 15 19 dBm
g mode : 13 17 dBm
n mode : 12 16 dBm

Modulation
CCK, DQPSK, DBPSK, OFDM

Management
Software AP

Utilities
Wireless setting, Site survey, WPS Wizard

Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support

Certificates
CE, FCC, C-Tick, IC

OS Support
Windows 7 32bit/64bit
Windows Vista 32bit/64bit
Windows XP 32bit/64bit
Linux Kernel 2.6 (Support Ubuntu only)

Package Content
Support CD
Warranty card
Low Profile Bracket
Dipole Antenna x 2

Item Dimension (L"xW"xH")
7.5 x 1.5 x 5.5

Weight
0.52

Warranty
2 Year
