TR-500CUS | ActForNet

MPN: TR-500CUS
Category: Power Supply >> ATX Power Supply
Vendor: Thermaltake
Weight: 5 LB(S)
Price: US$ 54.51

-
+

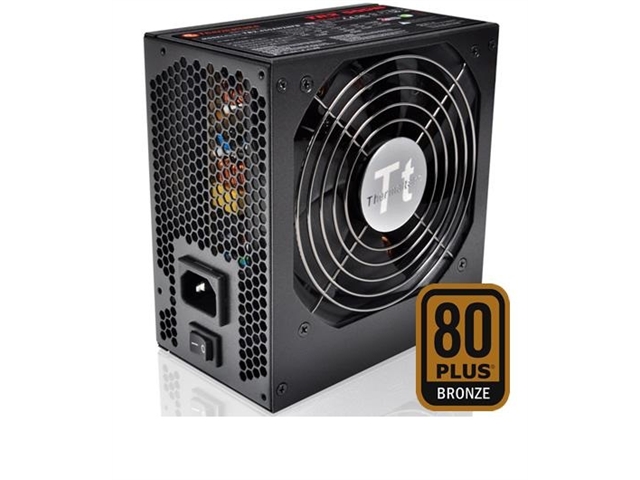

We all know power supply is a critical component for computer systems. Not only does it provide the power needed for stable and continuous operation, good power supply should go above and beyond to include power protections such as Over-Voltage, Over-Power or Short-Circuit Protections so users know that they are protected. What's more, all Thermaltake power supplies come with manufacturer-backed 5 year warranty. What makes the latest budget-friendly, reliability-tested, performance-guaranteed power supply from Thermaltake stand out from the rest?




Consumer-centric feature that can only be found on Thermaltake supplies such as Cable Management Optimized cables dramatically improves the computer's overall thermal efficiency by allowing users to stow away the excessive cables more effectively (decreasing airflow blockage) with cable lengths that are approximately 17% longer than any other power supplies in its class. Large 120mm fan with intelligent thermal control automatically adjusts fan speed according to the system's loading that eliminates unnecessary noise output when system is performing light tasks such as web browsing or word-processing.

Wattage
500 Watts

Fan
120 mm

Efficiency
72% +

PFC
Non PFC

Hold-Up Time
16 ms

Switches
ATX Logic on-off additional power rocker switch

Motherboard Connectors
20+4-pin Main Connector
4+4-pin Power Connector

Power Good Signal
100 - 500 ms

Form Factor
ATX 12V 2.3

Dimension
5.5 x 5.9 x 3.4 inch (L) x (W) x (H)
140 x 150 x 86 mm (L) x (W) x (H)

Certifications
UL / CUL / FCC

AC INPUT:
- Input Voltage :115 Vac / 230 Vac
- Input Current :8A / 5A
- Input Frequency Range :47 Hz - 63 Hz

PROTECTION:
- Over Voltage Protection :Yes
- Over Current Protection :Yes
- Over Load Protection :Yes
- Over Termperature Protection :Yes
- Under Voltage Protection :Yes
- Short Circuit Protection :Yes

Item Dimension (L"xW"xH"):
4 x 7 x 9.5

Weight:
5 lb

Warranty Information:
5 Years
