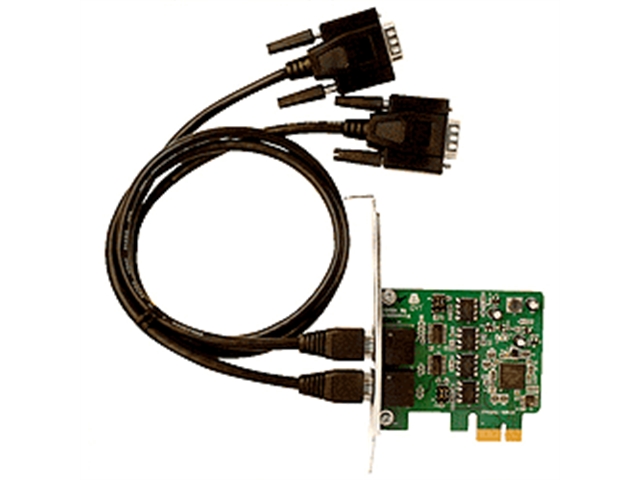

SIIG???s DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation is a high performance adapter card designed to instantly add two 422/485 serial ports with 15KV ESD and 3KV optical isolation protection to your PCIe enabled desktop computer. Its 422/485 serial interface delivers data transfer rates of up to 921.6Kb/s, and features 15KVDC ESD protection for use in industrial environments. The DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation connects with two RJ-45 to DB9 cables and with the included spare low-profile bracket installs in either standard height or low-profile systems offering the utmost flexibility in system chassis installation.
The DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation is FCC and CE approved and RoHS compliant. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG???s limited lifetime warranty.
Features
???Supports serial port data transfer rates up to 921.6Kb/s
???Built in 15KVDC ESD serial interface protection
???Built in 3KV optical isolation
???Built in 256 byte FIFO buffer
???Built in H/W, S/W data direction flow control
Serial port cable: 2x
RJ45 (male) to 9-pin DB-9 (male)
Length: 19.7" (50cm)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
Requirements
Desktop PC with an available PCIe slot
Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / 2000 SP4
Package Contents
DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation
Two RJ-45 to DB9 male cable
Software CD
Spare low profile bracket
Item Dimension (L"xW"xH"):1.93 x 5.43 x 8.54
Weight:1.51 lb
Warranty Information Life Time
