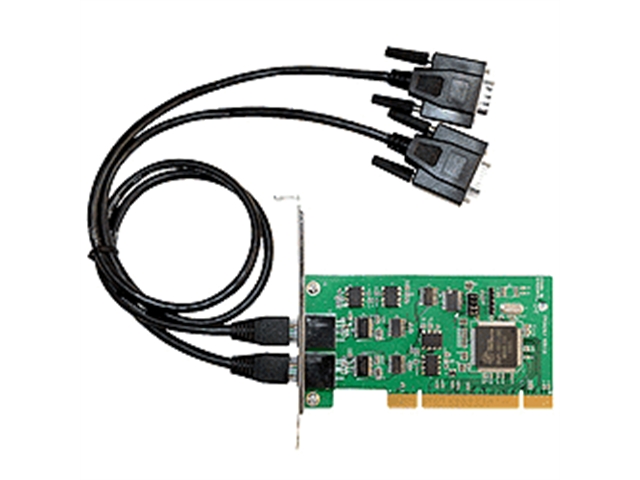

SIIG???s DP 2-Port Industrial 232/422/485 Universal PCI Adapter Card with 3KV Isolation is a high performance adapter card designed to easily add two RS-232/422/485 serial ports with 15KVDC ESD and 3KV optical isolation protection to your PCI enabled desktop computer. This 2-port RS232 adapter card delivers data transfer rates up to 921.6Kb/s, features 15KVDC ESD protection to protect both connected devices and the board itself from Electro Static Discharge, and 3KV optical isolation to increase noise isolation and protect your system from unforeseen power surges. The DP 2-Port Industrial 232/422/485 Universal PCI Adapter Card connects with space-saving RJ-45 to DB9 serial cable, and comes with a spare low profile bracket to install into either standard height or low-profile systems to offer the utmost flexibility in system chassis installation.



The DP 2-Port Industrial 232/422/485 Universal PCI Adapter Card is FCC and CE approved and RoHS compliant. It is fully compatible with a wide variety of Windows and Mac operating systems and is backed by SIIG???s limited lifetime warranty.


Features

??? Supports serial port data transfer rates up to 921.6Kb/s

??? Supports 3.3V & 5V PCI and PCI-X slot

??? Built in 15KVDC ESD serial interface and 3KV optical isolation protection

??? Built in 128 byte FIFO buffer

??? Built in H/W, S/W data direction flow control
