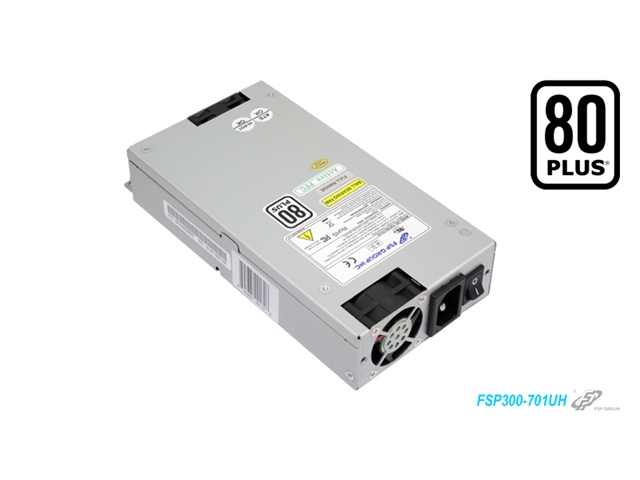

MPN: FSP300-701UH
Category: Power Supply >> Server Power Supply
Vendor: FSP Group
Weight: 2.7 LB(S)
Price: US$ 75.84
Cooling Fans
Dual, 40mm ball-bearing fan Linked with Thermal Sensor
Total Output Power
300-WATT TOTAL CONTINUOUS OUTPUT 50C
Output Connectors
Main 20+4Pin
(1) P4-Pin
(5) Molex 4-Pin
(3) Serial-ATA
(1) FDD 4-Pin
80Plus Certified
Yes
MBTF
100,000 Hours Typical
Input Voltage
115V AC to 230V AC, 47-63 Hz
Power Factor Correction (PFC)
Active PFC/Full Range
Input Current
5.0A at 115 Vrms, 60 Hz
3.0A at 230 Vrms, 50 Hz
Input Protection
Patented Input Fuse Protection
+12V Rails
Yes x2
Output Voltage
+3.3V DC
+5V DC
+12V1 DC
+12V2 DC
-12V DC
+5Vsb DC (Standby)
-5Vsb DC
Output Current
16.0A at +3.3V DC
18.0A at +5V DC
16.0A at +12V1 DC
16.0A at +12V2 DC
0.5A at -12V DC
2.5A at +5Vsb DC Standby
0.3A at -5Vsb DC Standby
Output Protection
Complete OVP, OCP, SCP Protection
Item Dimension (L"xW"xH")
7.48 x 3.94 x 1.59
Weight
2.70 lb
Warranty Information
2 Year
