RH2288H V2 Rack Server
The HUAWEI Tecal RH2288H V2 (RH2288H V2) is a
new-generation 2U 2-socket rack server. Featuring
two Intel® Xeon® E5-2600/E5-2600V2 series
processors, the RH2288H V2 provides a memory
capacity of 768 GB and large storage capacity,
making it an ideal product for critical services and
cloud computing.
Product Features
High Performance and Flexible Scalability
- Supports two Intel® Xeon® E5-2600/E5-2600V2 , providing a
maximum 12-core, L3 cache of 30 MB and QuickPath Interconnect
(QPI) at 8 GT/s; adopts the power consumption adjustment and
Turbo acceleration technology to improve performance while
reducing power consumption.
- Supports 24 DDR3 DIMMs, with a maximum memory capacity of
768 GB, providing enriched memory resources for memory-intensive
applications.
- Supports HUAWEI ES series high-performance PCIe SSD cards,
providing superb I/O performance to resolve hard disk I/O
bottlenecks.
- Supports high-performance GPUs, improving the graphics
processing and floating-point computing performances.
High Energy Efficiency
- Uses highly efficient 80 Plus Platinum PSUs that comply with
the ENERGY STAR standards and have passed the China Energy
Conservation and Environmentally-Friendly Certification.
- Provides 460 W and 800 W PSUs for flexible configurations to
improve power efficiency.
- Uses temperature sensors to monitor the heat of key
components, working with intelligent fan speed adjustment to
precisely cool the
server, markedly increasing the cooling efficiency.
- Adopts dynamic power capping to control the preset power
consumption, preventing service interruption.
Simple Management and Maintenance
- Supports the black box function to facilitate quick fault
location and service recovery.
- Implements simple system management by using the built-in
BMC, which supports SOL and remote KVM, startup, and shutdown.
Flexible and High Reliability Local Storage
- Supports eight 2.5-inch SAS/SATA HDDs or SSDs.
Alternatively, twelve 3.5-inch SAS/SATA HDDs and two 2.5-inch
SAS/SATA HDDs or SSDs, or twenty-six 2.5-inch SAS/SATA HDDs or
SSDs can be installed. Hard disks are hot-swappable. This meets
the large
storage capacity application requirements of servers.
- Adopts the industry-leading RAID technology, supporting RAID
0, 1, 10, 5, 50, 6 and 60 and providing a 512 MB or 1 GB cache;
supports an optional BBU and supercapacitor, RAID state
migration, RAID configuration memory, self-diagnosis, and remote
web setting to ensure data reliability.
Product Specification
Item
|
Tecal RH2288H V2
|
Form factor
|
2U
rack server
|
Number of processors
|
1 or 2
|
Processor
|
Intel® Xeon® E5-2600 or E5-2600V2 series
|
Memory
|
24 DDR3 RDIMMs/LRDIMMs, up to 768 GB
|
Internal
storage
|
Options:
8 x 2.5" SAS/SATA HDDs or SSDs
12 x 3.5" SAS/SATA HDDs and 2 x 2.5" SAS/SATA HDDs or SSDs
26 x 2.5" SAS/SATA HDDs or SSDs
|
RAID support
|
RAID 0, 1, 10, 5, 50, 6, and 60
RAID cache: 512 MB or 1 GB
Power-off protection:
• Supercapacitor
|
LOM network port
|
2 onboard GE ports or 4 onboard GE ports or 2 onboard 10GE
ports
|
Expansion slot
|
Up to 7 PCIe 3.0 slots
1 processor:
(Optional 1) 1 PCIe 3.0 x16 and 1 PCIe 3.0 x8
(Optional 2) 3 PCIe 3.0 x8
1 PCIe slot for a RAID controller card
2 processors:
3 PCIe 3.0 x8
1 PCIe slot for a RAID controller card
(Optional 1) 1 PCIe 3.0 x16 and 1 PCIe 3.0 x8
(Optional 2) 3 PCIe 3.0 x8
|
USB port
|
6 (front: 2, rear: 2, built-in: 2)
|
Fan module
|
4 hot-swappable counter-rotating fan modules in N+1
redundancy mode
|
PSU
|
2 hot-swappable 1+1 redundant PSUs:
AC: 460 W or 800 W
–48 V DC: 800 W
|
Management
|
BMC management module supports IPMI, SOL, KVM over IP, and
virtual media
One 10/100 Mbit/s RJ45 management network port
|
Operating systems supported
|
Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Oracle Enterprise Linux / Oracle Server VM
Debian
CentOS
Solaris
Citrix XenServer
VMware ESX / VMware ESXi Huawei
FusionSphere
|
Power supply
|
110 V/220 V AC or –48 V DC
|
Operating temperature
|
5ºC – 40ºC (41ºF – 104ºF)
|
Dimensions
|
Height: 87.5 mm (3.44 in.)
Width: 447 mm (17.60 in.)
Depth: 740 mm (29.13 in.)
|
For more details, please refer to
Huawei Tecal RH2288H V2 Rack Server Brochure
(PDF).
RH2288H V2 Configuration Help
-
Please select Customized Vendor
-
Alibaba typical configuration is include the china type power
cord, if need use it, please contact RD members to add relative
power cord.
-
Please select the type of the typical configuration
-
Alibaba typical configuration is include the china type power
cord, if need use it, please contact RD members to add relative
power cord.
-
Please select the type of Chassis Module
-
1.Include Chassis, main board, etc(Power, DVD, RAID card not
included);
2.8HDD Chassis support 8pcs 2.5" HDD at most, 12HDD Chassis
support 12pcs 3.5" HDD at most, 24HDD Chassis support 24pcs 2.5"
HDD at most;
3.12HDD and 24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
Need extend 2pcs 2.5" HDDs or not
-
12HDD/24HDD Chassis Support internal HDD backboard, and extend
2pcs 2.5" HDDs at most.
-
===CPU===
-
===Memory===
-
===3.5" Hard Disk===
-
7.1 Hard
Disk-500GB-SATA-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.2 Hard
Disk-1TB-SATA-7200rpm-3.5"-32M-3Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.3 Hard
Disk-1TB-SATA-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.4 Hard
Disk-2TB-SATA-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.5 Hard
Disk-3TB-SATA-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.6 Hard
Disk-3TB-SATA-7200rpm-3.5"-64M-Cloud Disk-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.7 Hard
Disk-4TB-SATA-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.8 Hard
Disk-6TB-SATA-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.9 Hard
Disk-8TB-SATA-7200rpm-3.5"-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most;
5.Hard disk cache to the actual delivery shall prevail.-
7.10 Hard
Disk-300GB-SAS-15000rpm-3.5"-16M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD EXP/24HDD Chassis support internal HDD backboard,
and extend 2pcs 2.5" HDDs at most.-
7.11 Hard
Disk-300GB-SAS-15000rpm-3.5"-64M-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD EXP/24HDD Chassis support internal HDD backboard,
and extend 2pcs 2.5" HDDs at most.-
7.12 Hard
Disk-600GB-SAS-15000rpm-3.5"-16M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.13 Hard
Disk-600GB-SAS-15000rpm-3.5"-64M-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.14 Hard
Disk-1TB-NL SAS-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.15 Hard
Disk-2TB-NL SAS-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.16 Hard
Disk-3TB-NL SAS-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.17 Hard
Disk-4TB-NL SAS-7200rpm-3.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at 1.8HDD Chassis support 8pcs 2.5"
HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.18 Hard
Disk-6TB-NL SAS-7200rpm-3.5"-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most;
5.Hard disk cache should be in accordance with the actual
delivery specifications.-
7.19 SSD-300GB-SATA-(2.5"
HDD, 3.5" Front Panel)-3Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.20 SSD-300GB-SATA-(2.5"
HDD, 3.5" Front Panel)-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.21 SSD-480GB-SATA-(2.5"
HDD, 3.5" Front Panel)-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.22 SSD-600GB-SATA-(2.5"
HDD, 3.5" Front Panel)-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.23 SSD-600GB-SATA-(2.5"
HDD, 3.5" Front Panel)-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.24 SSD-800GB-SATA-(2.5"
HDD, 3.5" Front Panel)-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
7.25 SSD-800GB-SATA-(2.5"
HDD, 3.5" Front Panel)-6Gb/s-eMLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.
-
===2.5" Hard Disk===
-
8.1 Hard
Disk-500GB-SATA-7200rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.2 Hard
Disk-1TB-SATA-7200rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.3 Hard
Disk-2TB-SATA-7200rpm-2.5"-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most;
5.Hard disk cache should be in accordance with the actual
delivery specifications.-
8.4 Hard
Disk-146GB-SAS-15000rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.5 Hard
Disk-300GB-SAS-10000rpm-2.5"-16M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.6 Hard
Disk-300GB-SAS-15000rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.7 Hard
Disk-300GB-SAS-15000rpm-2.5"-64M-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.8 Hard
Disk-600GB-SAS-10000rpm-2.5"-16M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.9 Hard
Disk-600GB-SAS-15000rpm-2.5"-64M-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.10 Hard
Disk-900GB-SAS-10000rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.11 Hard
Disk-1.2TB-SAS-10000rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.12 Hard
Disk-1.8TB-SAS-10000rpm-2.5"-128M-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.13 Hard
Disk-1TB-NL SAS-7200rpm-2.5"-64M-6Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.14 Hard
Disk-2TB-NL SAS-7200rpm-2.5"-12Gb/s
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most;
5.Hard disk cache should be in accordance with the actual
delivery specifications.-
8.15 SSD-80GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.16 SSD-160GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.17 SSD-160GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.18 SSD-200GB-SATA-2.5"-6Gb/s-eMLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.19 SSD-240GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.20 SSD-300GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.21 SSD-300GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.22 SSD-400GB-SATA-2.5"-6Gb/s-eMLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.23 SSD-480GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.24 SSD-600GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.25 SSD-600GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.26 SSD-800GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.27 SSD-800GB-SATA-2.5"-6Gb/s-eMLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.-
8.28 SSD-960GB-SATA-2.5"-6Gb/s-MLC
-
1.8HDD Chassis support 8pcs 2.5" HDD at most;
2.12HDD Chassis support 12pcs 3.5" HDD at most;
3.24HDD Chassis support 24pcs 2.5" HDD at most;
4.12HDD/24HDD Chassis support internal HDD backboard, and
extend 2pcs 2.5" HDDs at most.
-
===Internal DVD Drive===
-
===RAID Card===
-
10.1 Please
select the type of RAID Card
-
1.if Server is configured SAS/SATA/SSD Disk, you must
configure Raid Card;
2.8HDD Chassis: SR120(LSISAS2308) or SR320BC(LSI 2208) , at
least one should be selected;
3.12HDD Chassis: SR120(LSISAS2308) or SR320BC(LSI 2208), at
least one should be selected;
4.24HDD Chassis: SR120(LSISAS2308) or SR420BC(LSI 2208) , at
least one should be selected;
5.Proposed preference Raid card with super capacitance;
6.SR120 or SR130 RAID supports a maximum of two RAID arrays
and 10 hard disks per RAID array. When two RAID arrays are
configured, a maximum of 14 hard disks are supported. When
no RAID array is configured, the hard disk quantity is
unlimited.
-
===Network Interface Card===
-
===PCIe Card===
-
12.1 Please
select PCIe card in the 1st PCIe slot
-
1.One CPU: configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: Not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Double CPUs: Configure PCIe X8 Riser Module, support 6
PCIe Cards at most;
4.Double CPUs: Configure PCIe X16 Riser Module, support 5
PCIe Cards at most;
5.The first, second and third slot don't support full-high
PCIe Card.-
12.2 Please
select PCIe card in the 2nd PCIe slot
-
1.One CPU: configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: Not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Double CPUs: Configure PCIe X8 Riser Module, support 6
PCIe Cards at most;
4.Double CPUs: Configure PCIe X16 Riser Module, support 5
PCIe Cards at most;
5.The first, second and third slot don't support full-high
PCIe Card.-
12.3 Please
select PCIe card in the 3rd PCIe slot
-
1.One CPU: configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: Not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Double CPUs: Configure PCIe X8 Riser Module, support 6
PCIe Cards at most;
4.Double CPUs: Configure PCIe X16 Riser Module, support 5
PCIe Cards at most;
5.The first, second and third slot don't support full-high
PCIe Card.-
12.4 Please
select PCIe card in the 4th PCIe slot
-
1.One CPU: configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: Not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Double CPUs: Configure PCIe X8 Riser Module, support 6
PCIe Cards at most;
4.Double CPUs: Configure PCIe X16 Riser Module, support 5
PCIe Cards at most;
5.The first, second and third slot don't support full-high
PCIe Card;
6.K1/K2 PCIe card is a dual slot GPU cards, motherboards
support 1pcs at most;
7.When configure the 16x Riser card, the GPU card installs
in 4th or 5th slot, there is a slot supports X16 speed,
another slot supports x8 speed;
8.Optional, PCIe x16 Riser card, the fan speed will be more
than 80% speed, high noise, low power consumption, it is
recommended not configured x16 PCIe card, configure the
Riser Card PCIe x8.-
12.5 Please
select PCIe card in the 5th PCIe slot
-
1.One CPU: configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: Not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Double CPUs: Configure PCIe X8 Riser Module, support 6
PCIe Cards at most;
4.Double CPUs: Configure PCIe X16 Riser Module, support 5
PCIe Cards at most;
5.The first, second and third slot don't support full-high
PCIe Card;
6.When configure the 16x Riser card, the GPU card installs
in 4th or 5th slot, there is a slot supports X16 speed,
another slot supports x8 speed;
7.Optional, PCIe x16 Riser card, the fan speed will be more
than 80% speed, high noise, low power consumption, it is
recommended not configured x16 PCIe card, configure the
Riser Card PCIe x8.-
12.6 Please
select PCIe card in the 6th PCIe slot
-
1.One CPU: configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: Not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Double CPUs: Configure PCIe X8 Riser Module, support 6
PCIe Cards at most;
4.Double CPUs: Configure PCIe X16 Riser Module, support 5
PCIe Cards at most;
5.The first, second and third slot don't support full-high
PCIe Card.-
12.7 Please
input the quantity of QDR IB Cable
-
Used for PCIe IB Card, length is 3m.
-
12.8 5m
IB FDR High-speed Cable-Include 56Gb/s QSFP+ Optical Module
-
The IB FDR cable including the QSFP+ optical transceiver and
optical fiber, does not need to configure the optical fiber
additionally.
-
12.9 10m
IB FDR High-speed Cable-Include 56Gb/s QSFP+ Optical Module
-
The IB FDR cable including the QSFP+ optical transceiver and
optical fiber, does not need to configure the optical fiber
additionally.
-
12.10 Please
select the type of MiniSAS High Speed Cable
-
Used for LSI SAS/SATA HBA Card, length is 1m and 3m.
-
12.11 Please
input the quantity of MiniSAS High Speed Cable
-
Used for LSI SAS/SATA HBA Card, length is 1m and 3m.
-
===High Speed Cable and Optical Transceiver ===
-
13.1 1m
Passive SFP+ High-speed Cable-include Interface Module
-
1.Used for 10GE SFP+ Network Card, the quantity of SFP+
Cable and optical transceiver are not more than the 10GE
interfaces without optical transceiver;
2.The SFP+ cable including interface module, does not need
to configure the optical transceiver and optical fiber
additionally.-
13.2 3m
Passive SFP+ High-speed Cable-include Interface Module
-
1.Used for 10GE SFP+ Network Card, the quantity of SFP+
Cable and optical transceiver are not more than the 10GE
interfaces without optical transceiver;
2.The SFP+ cable including interface module, does not need
to configure the optical transceiver and optical fiber
additionally.-
13.3 10m
Passive SFP+ High-speed Cable-include Interface Module
-
1.Used for 10GE SFP+ Network Card, the quantity of SFP+
Cable and optical transceiver are not more than the 10GE
interfaces without optical transceiver;
2.The SFP+ cable including interface module, does not need
to configure the optical transceiver and optical fiber
additionally.-
13.4 Optical
Transceiver-SFP+-1310nm-10Gb/s-LC-Singlemode-10km
-
1.Used for 10GE SFP+ Network Card, the quantity of SFP+
Cable and optical transceiver are not more than the 10GE
interfaces without optical transceiver;
2.Configure the optical transceiver, if needs optical fiber,
please add the accessory product module to select optical
fiber base on customer request.-
13.5 Optical
Transceiver-SFP+-850nm-10Gb/s-LC-Multimode-0.3km
-
1.Used for 10GE SFP+ Network Card, the quantity of SFP+
Cable and optical transceiver are not more than the 10GE
interfaces without optical transceiver;
2.Configure the optical transceiver, if needs optical fiber,
please add the accessory product module to select optical
fiber base on customer request.
-
===Riser Card===
-
14.1 Please
select the type of the PCIe Riser Card
-
1.One CPU: Configure 2U Riser Module, support 3 PCIe at
most;
2.Double CPUs: not configure PCIe X16/X8 Riser Module,
support 3 PCIe at most,;
3.Configure PCIe X8 Riser Module, support 6 PCIe Cards at
most;
4.Configure PCIe X16 Riser Module, support 5 PCIe Cards at
most;
5.The first, second and third slot don't support full-high
PCIe Card;
6.Optional, PCIe x16 Riser card, the fan speed will be more
than 80% speed, high noise, low power consumption, it is
recommended not configured x16 PCIe card, configure the
Riser Card PCIe x8.
-
===Power Supply===
-
15.1 Please
select the type of Power Supply
-
1.For more accurate power information, please use the power
calculator (Huawei internal use only). link:
http://3ms.huawei.com/mm/docMaintain/mmMaintain.do?method=showMMDetail&f_id=SV14010630220023
2.460W power supply module supports only 95W and below
processors;
3.800W AC, Support for high-voltage dc voltage range 150 ~
260Vdc, not meet 288Vdc standard;
4.800W platinum AC power supply module instead by 750W
platinum AC, will be removed from eCFG&SCT;
5.800W DC, Power efficiency to meet the 80Plus Gold
Standard, conversion efficiency of 92% at 50% load.-
15.2 Please
select the type of C13 AC power cord
-
1.Power Cable recommend Wall Plug and PDU Style, if the use
condition is clear, it could select the Wall Plug or PDU
Style.
2.2000W and below power supply use C13 power cable, PDU
power cable is 12A in Japan, other countries is 10A; wall
plug cable is 12A in Japan, other countries is 10A.
3.If use the wall plug, please select power cable by select
Area model(C13 to C13 Wall plug, normal extension cord );
4.If use the PDU plug, please select C13 PDU power cable(C13
to C14 PDU plug, PDU extension cord ).
-

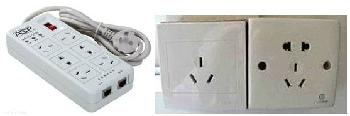

PDU-IEC
plug
-
Wall
Pulg for PDU
-
Normal
Wall Pulg
-
15.3 Please
select the type of Wall Plug power cord
-
1.Power Cable recommend Wall Plug and PDU Style, if the use
condition is clear, it could select the Wall Plug or PDU
Style.
2.2000W and below power supply use C13 power cable, PDU
power cable is 12A in Japan, other countries is 10A; wall
plug cable is 12A in Japan, other countries is 10A.
3.If use the wall plug, please select power cable by select
Area model(C13 to C13 Wall plug, normal extension cord );
4.If use the PDU plug, please select C13 PDU power cable(C13
to C14 PDU plug, PDU extension cord ).
-
Denmark
C13-C13
-
Korea
C13-C13
-
Argentina
C13-C13
-
Australia
C13-C13
-
Brazil
C13-C13
-
Britain
C13-C13
-
China
C13-C13
-
Europe
C13-C13
-
South
Africa C13-C13
-
Italy
C13-C13
-
Japan
C13-C13
-
North
America C13-C13
-
Switzerland
C13-C13
-
India
C13-C13
-
15.4 Please
select the type of PDU power cord
-
1.Power Cable recommend Wall Plug and PDU Style, if the use
condition is clear, it could select the Wall Plug or PDU
Style.
2.2000W and below power supply use C13 power cable, PDU
power cable is 12A in Japan, other countries is 10A; wall
plug cable is 12A in Japan, other countries is 10A.
3.If use the wall plug, please select power cable by select
Area model(C13 to C13 Wall plug, normal extension cord );
4.If use the PDU plug, please select C13 PDU power cable(C13
to C14 PDU plug, PDU extension cord ).
-
China(PDU)
C13-14
-
===Insert Card===
-

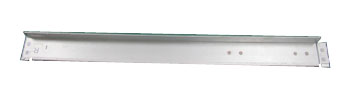

===Accessory===
-
===Operating System===
-
18.1 Please
select the type of the Operating System
-
Operating system manufacturers provide the original service,
Huawei only resale.
-
18.2 Please
select the Operating System
-
If the server need support Ivy-Bridge platform, OS needs to
update the related version.
-
18.3 Additional
License,Windows Server
2012,Chinese,Standard,x86,64bit,General OEM,2 physical
processors,2 virtual instances, without product services
-
Windows OS licensing is based on cumulative CPU
configuration, add a license for this extension is to add a
windows OS configuration.
-
18.4 Additional
License,Windows Server
2012,English,Standard,x86,64bit,General OEM,2 physical
processors,2 virtual instances,without product services
-
Windows OS licensing is based on cumulative CPU
configuration, add a license for this extension is to add a
windows OS configuration.
-
18.5 Additional
License,Windows Server
2012,English,DataCenter,x86,64bit,General OEM,2 physical
processors,unlimited virtual instances,without product
services
-
Windows OS licensing is based on cumulative CPU
configuration, add a license for this extension is to add a
windows OS configuration.
-
18.6 Expand
license of 1*Client CAL for Windows Server 2012 Standard(x86
64bit),OEM,Additional License,Paper license,No Doc,Without
Product Services
-
1.The Windows Server 2012-Standard-expand CAL License;
2.Each License increases 1pcs client side access authority.-
18.7 Client
Access License (CAL),1 device,for Windows Server
2012/2008,Chinese,General OEM,without product services
-
1.The Windows Server 2012-Chinese Version-expands Device CAL
License;
2.Each License increases 1pcs device side access authority.-
18.8 Client
Access License (CAL),1 device,for Windows Server
2012/2008,English,General OEM,without product services
-
1.The Windows Server 2012-English Version-expands Device CAL
License;
2.Each License increases 1pcs device side access authority.-
18.9 Client
Access License (CAL),10 device,for Windows Server
2012/2008,Chinese,General OEM,without product services
-
1.The Windows Server 2012-Chinese Version-expands Device CAL
License;
2.Each License increases 10pcs device side access authority.-
18.10 Client
Access License (CAL),10 device,for Windows Server
2012/2008,English,General OEM,without product services
-
1.The Windows Server 2012-English Version-expands Device CAL
License;
2.Each License increases 10pcs device side access authority.-
18.11 Client
Access License (CAL),1 User,for Windows Server
2012/2008,Chinese,General OEM,without product services
-
1.The Windows Server 2012-Chinese Version-expands User CAL
License;
2.Each License increases 1pcs user side access authority.-
18.12 Client
Access License (CAL),1 User,for Windows Server
2012/2008,English,General OEM,without product services
-
1.The Windows Server 2012-English Version-expands User CAL
License;
2.Each License increases 1pcs user side access authority.-
18.13 Client
Access License (CAL),10 User,for Windows Server
2012/2008,Chinese,General OEM,without product services
-
1.The Windows Server 2012-Chinese Version-expands User CAL
License;
2.Each License increases 10pcs user side access authority.-
18.14 Client
Access License (CAL),10 User,for Windows Server
2012/2008,English,General OEM,without product services
-
1.The Windows Server 2012-English Version-expands User CAL
License;
2.Each License increases 10pcs user side access authority.
-
===Value-added service===
-
19.1 Need
individually configured BMA or not
-
1.iBMA is an inband management tool that is installed on x86
OSs of single Huawei servers for server management. iBMC is
an outband management tool independent from the x86 system.
iBMA obtains more information from OSs than iBMC;
2.iBMA provides management in terms of
device,fault,performance,alarm and supports BIOS and BMC
upgrade.iBMA and iBMC share certain functions,but iBMA
manages more information than iBMC.
For example,iBMA manages process information,CPU performance
status and RAID controller information,which cannot be
accessed by iBMC. For details about the iBMA
functions,visit:
http://3ms.huawei.com/mm/docMaintain/mmMaintain.do?method=showMMDetail&f_id=SV15012657270110
The following is the compatibility, list:
http://3ms.huawei.com/mm/docMaintain/mmMaintain.do?method=showMMDetail&f_id=SV13010433470019
Channel users want to refer to compatibility List of
iBMA,please access following link first :
http://support.huawei.com/enterprise/softdownload.action?lang=en&idAbsPath=fixnode01|7919749|9856522|9856629|21099187&pid=21099187&vrc=21100389|21473112|21473114|21551613&show=showVDetail&tab=bz&bz_vr=21473112&bz_vrc=&nbz_vr=null#idAbsPath=fixnode01%7C7919749%7C9856522%7C9856629%7C21099187&ot=clk&pid=21099187&t=399&type=402-00023809
,then enter into "Download" label,choose the latest version
of iBMA,and refer to Version Mapping Table;
3.In addition to single server management, iBMA provides the
CLI, SNMP, and HPI interfaces to interconnect with
upper-level network management systems. iBMA can also be
used together with the server management component eSight;
4.If there are no specific requirements from customers, iBMA
sole sale is not recommended. iBMA is optional. Each server
can be configured with a maximum of one iBMA.
