2488 V5

Part #: 02312BDU

Module #: H24M-05-S8AFM1

Price: US$ 0

Availability: In Stock

* Online Price may be wrong or outdated and can NOT be used as proof by anyone or any organization for any purpose.

4*CPU(Gold 5100/Gold 6100/Platinum 8100),32*DIMMs,8*2.5" HDDs or 25*2.5" HDDs or 24*2.5" HDDs

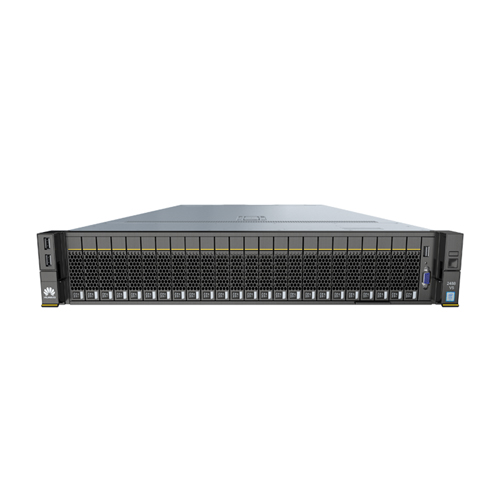

ModelFusionServer 2488 V5
Form Factor2U rack server
Processors2 or 4 Intel® Xeon® Scalable Processors of up to 205W: Platinum 8100, Gold 6100, or Gold 5100 series
Memory32 DDR4 DIMM slots, up to 2,666 MT/s
Internal StorageSupports hot-swappable hard drives with the following configuration options:

  • 8 x 2.5-inch SAS/SATA HDDs on the front

  • 25 x 2.5-inch SAS/SATA HDDs on the front

  • 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front

Flash storage:

  • 2 x M.2 SSDs

RAID Support

  • RAID 0, 1, 10, 1E, 5, 50, 6, or 60

  • Configured with a supercapacitor for cache power-off protection

  • Supports RAID level migration, drive roaming

LOM Network Ports2 x GE + 2 x 10 GE ports
PCIe ExpansionUp to 9 PCIe 3.0 slots
Fan Modules4 hot-swappable fan modules, providing protection against single-fan failures
Power Supply Units2 hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported:

  • 2,000W AC Platinum PSUs

  • 1,500W AC Platinum PSUs

  • 900W AC Platinum PSUs

  • 1,200W DC PSUs (Note 1)

Management

  • Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.

  • Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.

Operating Temperature5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4
CertificationsCE, UL, FCC, CCC, and RoHS
Installation suiteL-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)86.1 mm (2U) x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
