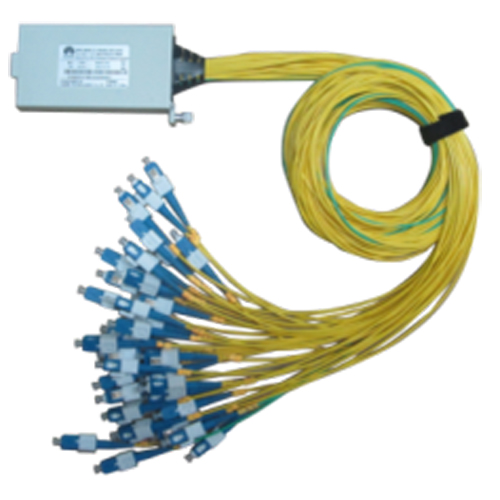

This is an optical splitter module and unit for implementing the splitting function on the optical distribution point.
| Even Optical Splitter | Working bandwidth（nm） | Insertion loss （dB） | WDL (dB) | TDL (dB) | Return loss （dB） | Uniformity （dB） | PDL (dB) | Directivity (dB) | Power（mW） |
|---|---|---|---|---|---|---|---|---|---|
| 1:16 PLC | 1260~1650 | ≤13.6 | ≤0.5 | ≤0.5 | ≥50 （PC） ≥55 （APC） | ≤1.0 | ≤0.3 | ≥55 | ≤300 |
| 1:32 PLC | ≤16.8 | ≤0.8 | ≤1.3 | ≤0.3 | |||||
| 1:64 PLC | ≤20.3 | ≤0.8 | ≤1.8 | ≤0.3 | |||||
| 2:16 PLC | 1260~1650 | ≤14.3 | ≤1.0 | ≤1.8 | ≤0.3 | ≤300 | |||
| 2:32 PLC | ≤17.4 | ≤1.0 | ≤1.8 | ≤0.3 | |||||
| 2:64 PCL | ≤21 | ≤1.0 | ≤2.5 | ≤0.4 |
| Item | Description | ||
|---|---|---|---|
| Environment parameter | Working temp | -40℃～+85℃ | |
| Storage temp | -40℃～+85℃ | ||
| Work humidity | ≤95% （with no condensate) | ||
| Atm pressure | 70kPa～106kPa | ||
| Physical parameter | Size（H*W*D） | 4mm×12mm×60mm 4mm×12mm×80mm | 6mm×20mm×80mm 6mm×40mm×100mm |
| Connector | SC/APC, SC/UPC, LC/APC | ||
| Item | Description |
|---|---|
| Insertion loss | UPC≤0.2dB；APC≤0.2dB |
| Return loss | UPC≥50dB；APC≥55dB |
| Lifetime | ＞500 times |
